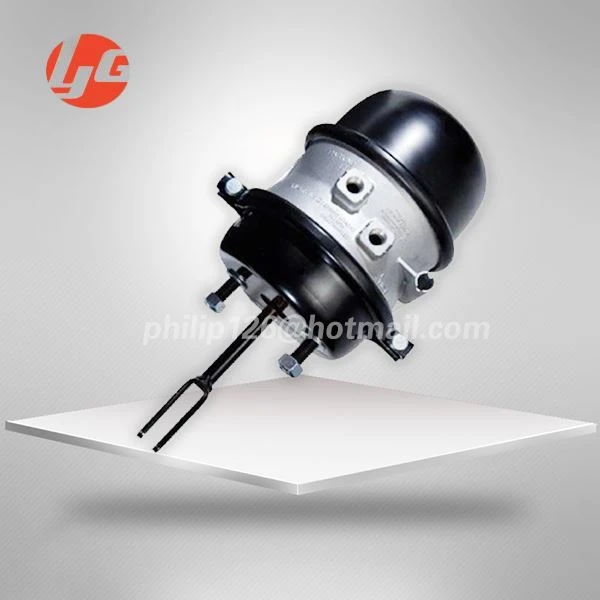

Spring Brake Chamber Replacement for Bendix 800833, Haldex Gc3636, Automann 179. Sb3636

We provide consumers with value-added Center Bearing 211070 1X, 139 103, AFP Glavalume Steel Coils and are quickly becoming a trusted partner for suppliers and a respected company in the marketplace. We have a professional, efficient and energetic service team and a complete sales network. We attach importance to the cultivation of engineering and management talents of enterprises, and promote the concentration of scientific and technological talents to enterprises. We hope to receive your detailed inquiry as soon as possible, and look forward to having the opportunity to cooperate with you in the near future!

Air brake chamber 3636

Product Description

Part Number: 3437051, 3436051

HS CODE: 84123100.90

Chamber Type: Combination Chamber - Size 3636, type: Type 36/36
Superior Power Spring Technology; Advanced powder coating process; Resists corrosion and fatigue
Double O-ring Center seal; Two o-rings for positive sealing and plastic bearings for long life
World Class Diaphragm; High quality rubber compound, resistant to heat and cold; Superior flexibility even at -40°F
Rugged Service Housing; 9 gauge steel, powder coated
Orange Alert Stroke Indicator
Self-piloting Dust Shield
Sizes to fit all drum brake applications

Complete service and spring brake assembly

Type 36 spring brake chamber

Type 36 service brake chamber

Stroke: 3.0" (Standard)

Includes spring cage bolt

Spring chamber permanently attached for safety

Epoxy-coated internal parts for long life

Combination Spring Brake Specifications

A: 11.13" (Length of chamber from face of stud housing to the end of the spring housing)

B: 8.38" (Length of Piggyback center body to end of spring housing)

C: 9.25"

D: 9.18" (Dimension at rolled seal)

E: 4.75" (Stud Spacing)

F: 5/8"-11 UNC (Stud Size)

G: 5/8"-18 UNF (Push rod size)

X: 8.0" (Push rod length)
Weight. (each) 11.8 kg/pc

Cross References:

3437051, EGC-3636, MGM3437051, GC3636, 5554-3437051, 1691258C91, ZAJ3437051, OTR3636SB
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. Check the description to be sure it will work in your application.

Assembly figure

Package:

(1) 2 PCS chambers in one carton, then pallets.

(2) directly in pallets.

Product marking

Both laser marking and stamping mark are OK.

Min. order quantity:

100 PCS

Delivery term:

In general, about 20-45 days for your order.

Payment term:

T/T, L/C, D/P, etc.
